Information
The central stage used during the 2016 / 2017 Festival tour was produced by Brilliant Stages and is almost identical to that of the Made In Germany tours. As such, it features an 18m wide, 1m tall 2-tier design. The center section, which acts as the drum riser, features a doorway with the band cross logo to the backstage area. Located on either side of the door are 2 speed-controlled fans.
The stage also features panels of Neaco NI bar aluminium grating which are installed at the start of the day to the festival stage to allow for the bands lighting and stage effects from below the stage to pass through.
The 3D Multi-layered, Grid-like Backdrop, which measures 24m by 11m, featured during the tour, as well as the various lighting rigs, were produced by Perry Scenic.[1]
Lighting
Moving Elements

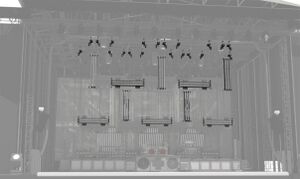

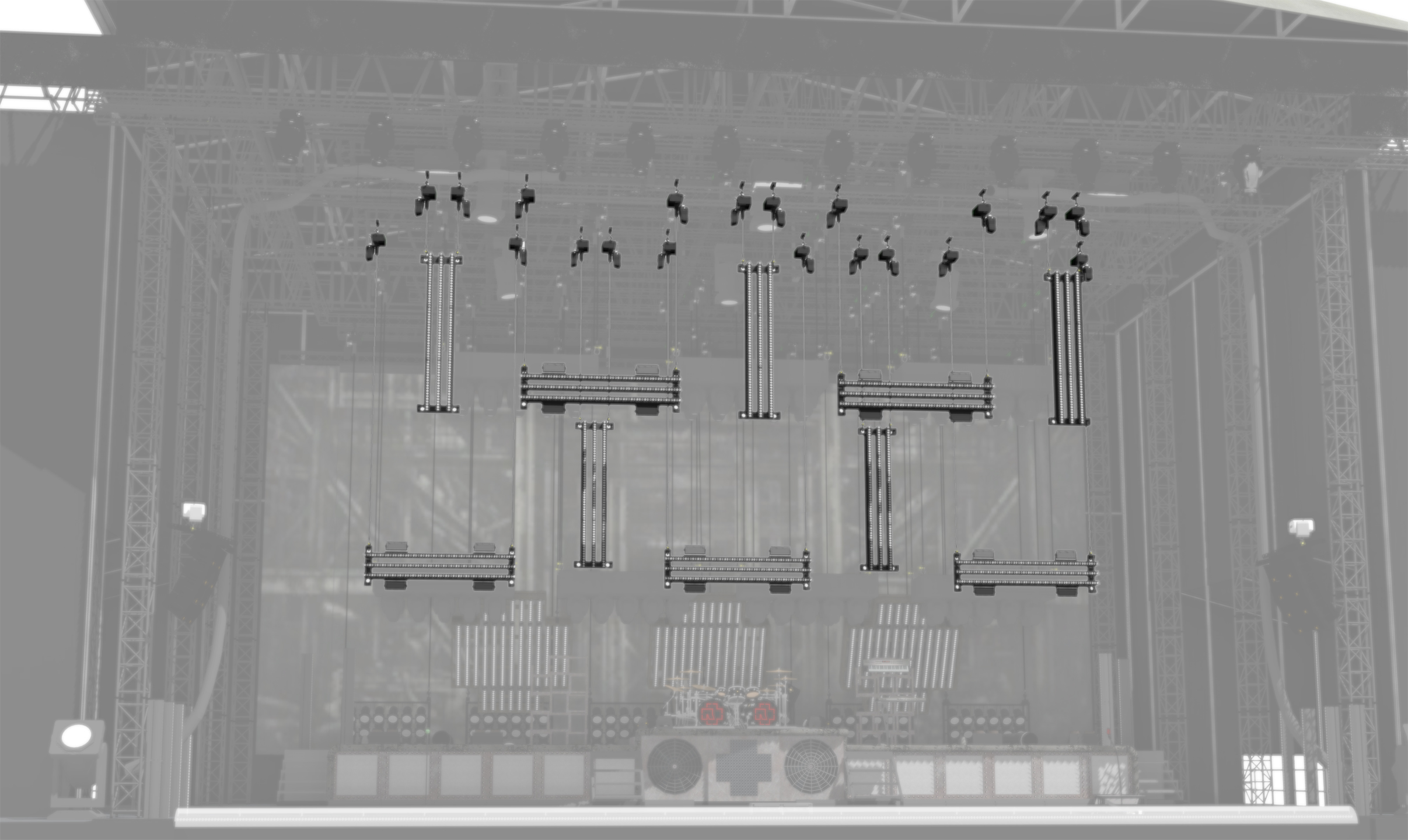

- Located above the band are 10 vertical and horizontal grid-like rigs. They are each composed of 3 rows of 3 GLP Impression X4 Bar 20 fixtures. The Horizontal rigs also each feature 4 SGM Q-7 fixtures. The vertical orientated rigs only have the ability to move up and down, while the horizontal rigs also have the ability to rotate horizontally.

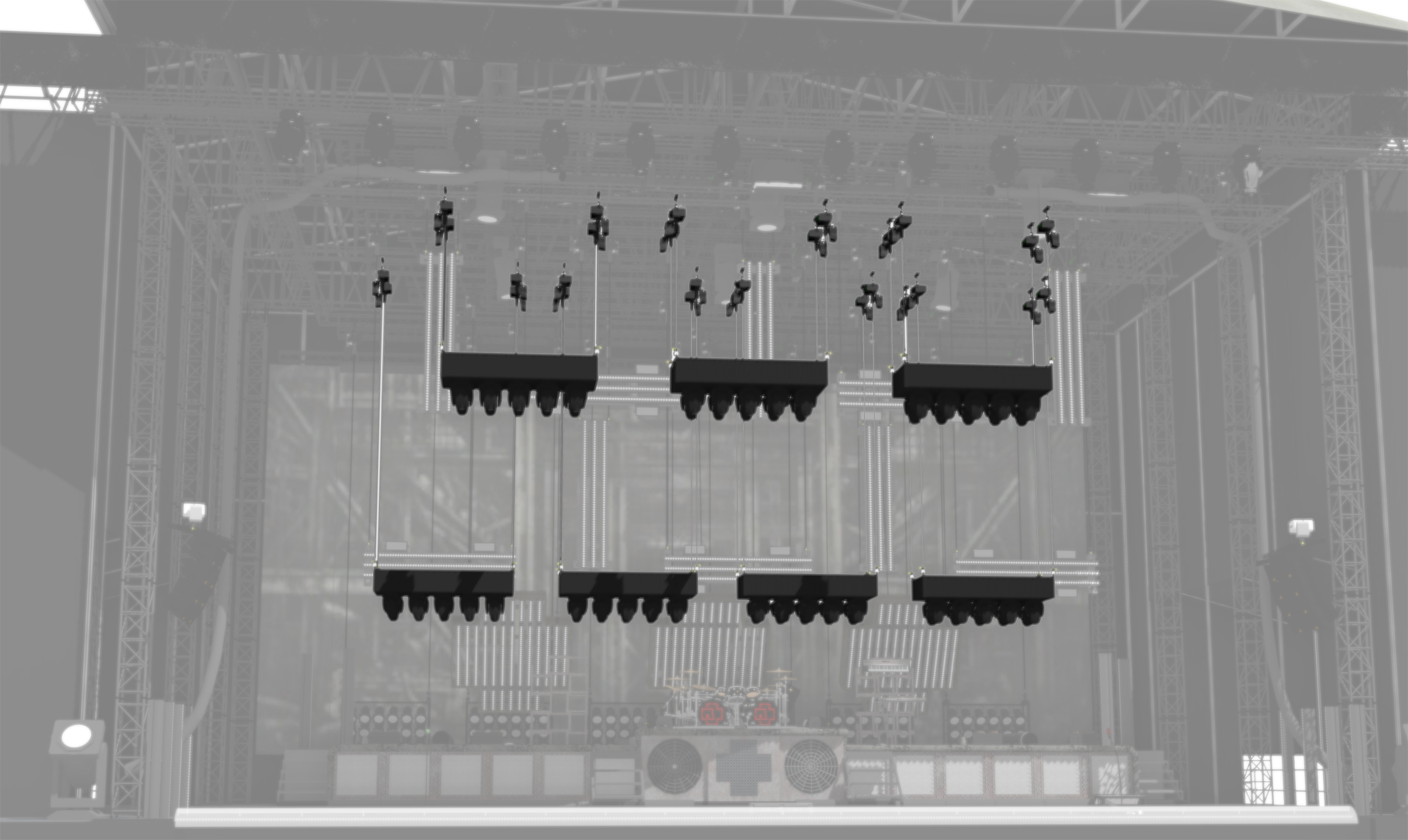

- Located above and behind the band are 7 block shaped rigs. They are each composed of 10 GLP GT-1 fixtures. They all have the ability to move up and down and rotate horizontally. Additionally, the left and right rigs of the front 3 feature 2 Martin MAC 101 fixtures each, which are used to illuminate the guitarists as they ride them down during the intro.

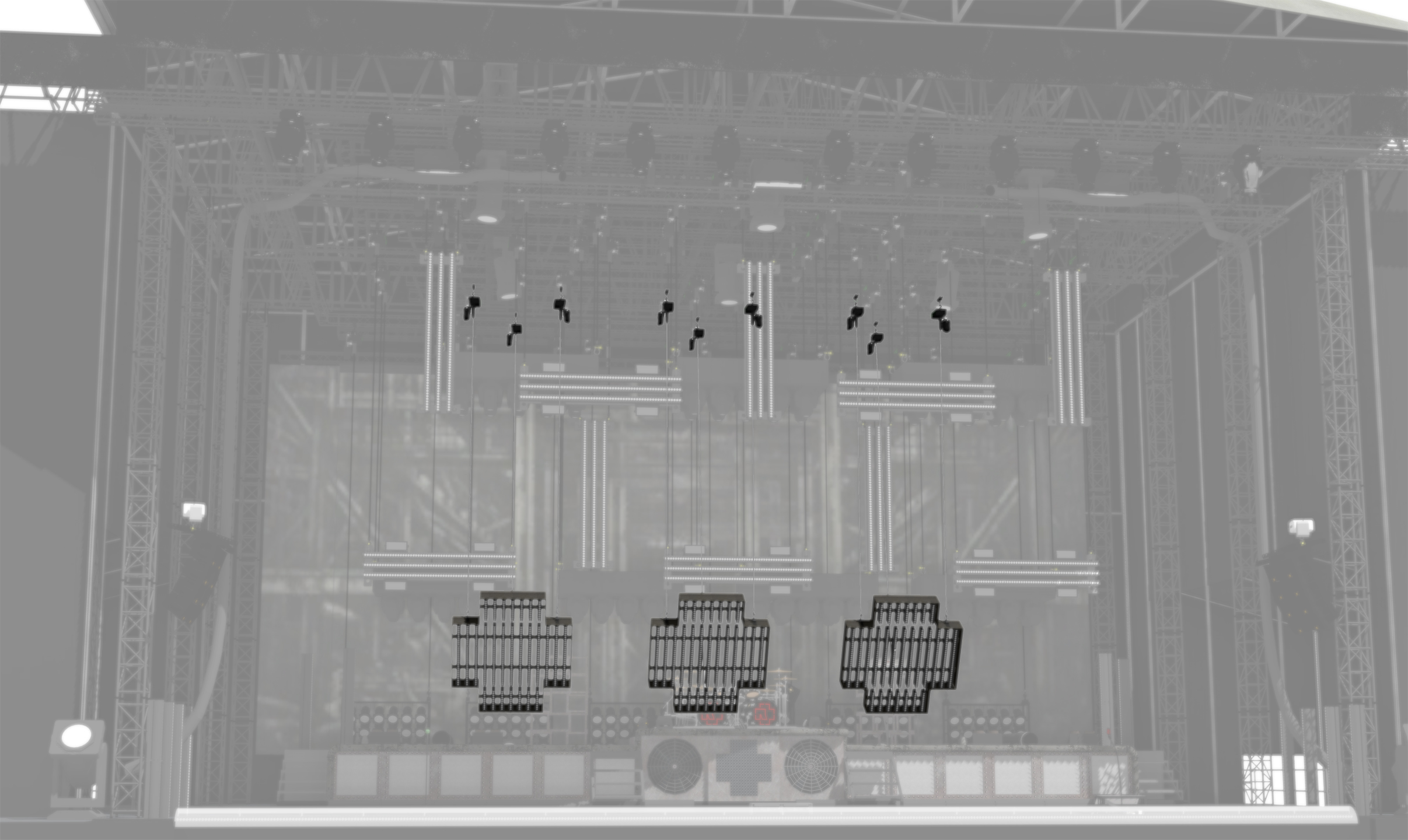

- Located behind the band are 3 cross-shaped lighting rigs. They are each composed of 13 GLP Impression X4 Bar 20 and 27 GLP Impression X4 Bar 10 fixtures. They have the ability to move up and down, rotate horizontally and vertically.

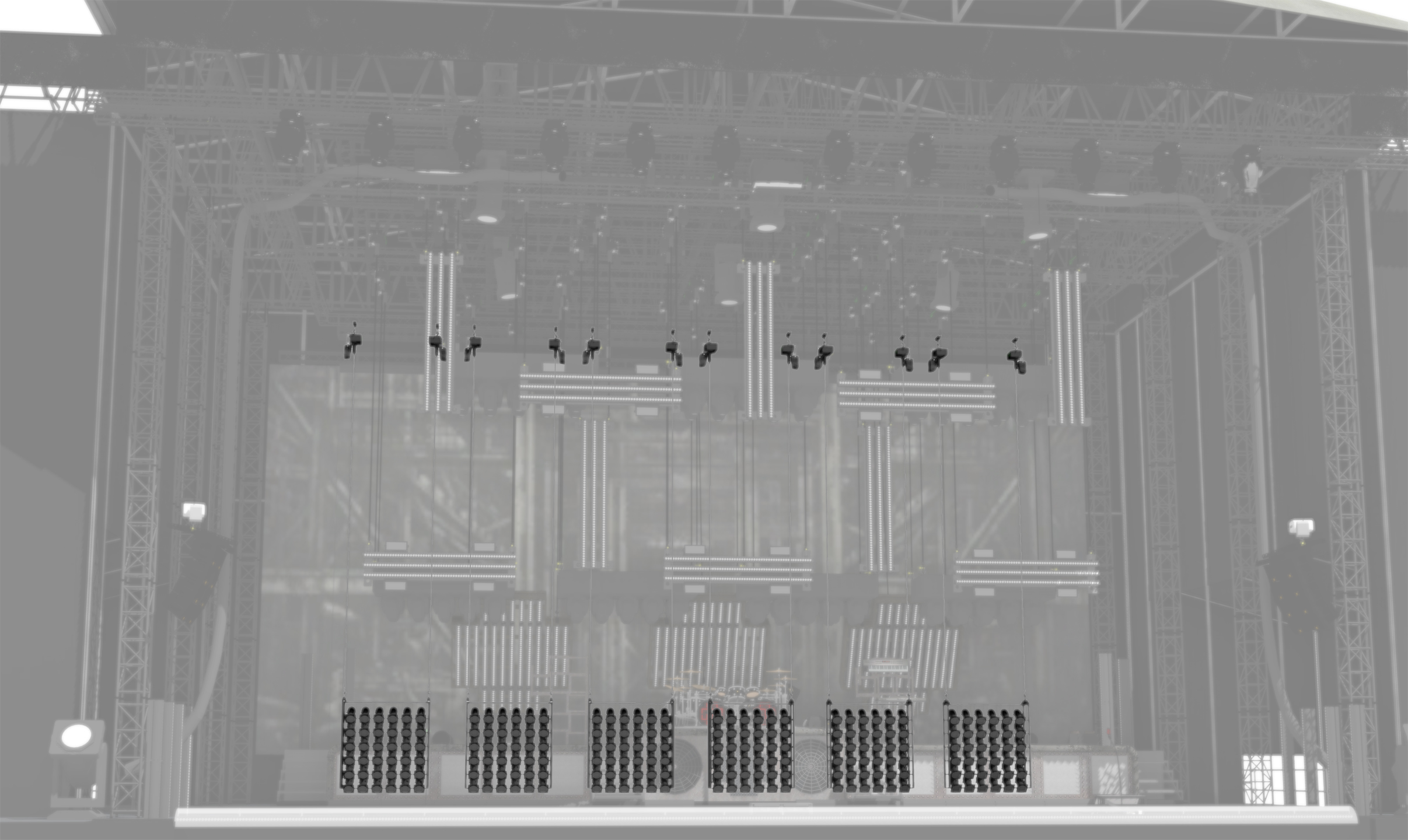

- Located at the far back of the stage are 6 lighting rigs each composed of 36 PAR64 Cans. These rigs can only move up and down.
Full Fixture List
- 12 x AO Technology Falcon 7K
- 13 x AO Technology Falcon 3K
- 216 x PAR64 Can
- 211x GLP Impression X4 Bar 20
- 82x GLP Impression X4 Bar 10
- 46 x SGM Q-7 RGBW
- 8 x SGM P-5
- 20 x ETC Source Four Par
- 70 x GLP GT-1 FL
- 12 x Robe BMFL WashBeam
- 12 x Martin MAC 2000 Wash XB
- 2 x Vari*Lite VL3000 Spot [2]
Changes
At some shows, the ETC Source Four Par fixtures were swapped for PAR64 lights.
During the shows on 8.07.2016, 9.07.2016 and 11.07.2016 at the Waldbühne in Berlin, additional lighting fixtures were used, these included:
- 4 x AO Technology Falcon 3K located alongside the Falcon 7K Fixtures on the Side Stage
- ? x GLP X4 Bar 20 & 10 located to illuminate the walls to the sides of the stage
- ? x SGM Q-7 located behind the stage to illuminate the tree line
During the shows on 15.07.2016, 1.07.2017, 11.07.2017, 12.07.2017 and 13.07.2017, the Falcon 7K Fixtures located on the Side Stage were not used.
During the shows on 3.09.2016, 11.07.2017, 12.07.2017 and 13.07.2017, the 6x6 PAR64 Can light arrays located Backstage were not used.
