Reise, Reise Tour Stage

From RammWiki

Note: Work in progress

Information

  • It took 13 trucks to transport all the parts.
  • The stage design was created by Leroy Bennett

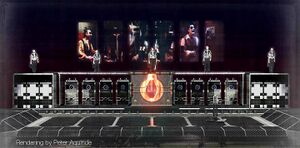

  • The concept art for the Reise Reise stage. Rendered by Peter Aquinde
    The concepts of this stage included supposed use of video projection again, a concept that would not come back until the Stadium Tour.

Lighting

Lighting

  • 4 x Whole Hog II Lichtstellpulte
  • 2 x Whole Hog II Wing
  • 2 x Hog overdrive box
  • 8 x 17"-Flat Screen-Monitor
  • 2 x Data lynx - 4-way-DMX switcher
  • 1 x SMPTE Amplifier
  • 1 x TIMECODE Digital Clock
  • 2 x 2500-VA-UPS - 240V
  • 14 x opto-isolierte DMX Buffer box
  • 1 x 150 m Ethernet/SMPTE remote
  • 7 x Avolites 72-weg-DMX-dimmer
  • 5 x 400A Mains Distro
  • 46 x Martin MAC 2000 profile
  • 35 x Martin MAC 2000 wash light
  • 78 x Pixel Line 1044 LED Batten
  • 7 x Coemar Supercyc 2.4kW
  • 6 x Syncrolite SX3kW
  • 82 x Martin Atomic 3000 strobe
  • 42 x Martin Atomic strobe colour changer
  • 7 x Martin colour changer PSU
  • 48 x Par 64 bar 4
  • 16 x Par 64 bar 6
  • 74 x Par 36 8-lite
  • 25 x Par 36 4-lite
  • 2 x Strong Super Trouper 2kW fol-low spot
  • 1 x 12 way ClearCom A/B intercom system
  • 4 x DF50 haze machine
  • 8 x ZR33 DMX smoke machine
  • 8 x London pedestal fan

Trusses

PA and Monitoring

Changes

  • The side platforms were sometimes removed
  • The grating was sometimes not installed along with the lights and pyrotechnics underneath it.
  • Later in the tour, some of the Par 64 bar 6s were removed.
  • The width of the structure containing the amplifiers was reduced sometimes.

Sources
